python讲义11：网络通信程序及数据库读写

python redis twisted

1.redis key/value数据库

1.1 启动redis服务（运行exe文件即可）

1.2 redis数据库讲解

• key/value数据库
• key的数据类型
• string
• value的数据类型：
• 五种数据类型：string,hash,list,set 及sorted set。

• json解释
  https://baike.baidu.com/item/JSON

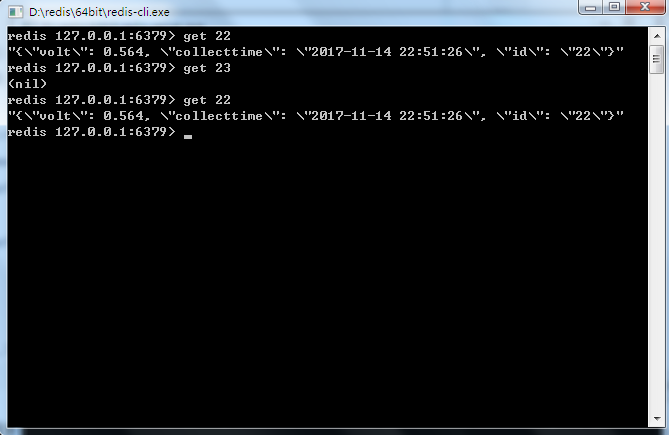

• 我们将json格式的字符串作为value存入redis

1.3 要点讲解

• (1)服务器端侦听端口,等待客户端连接

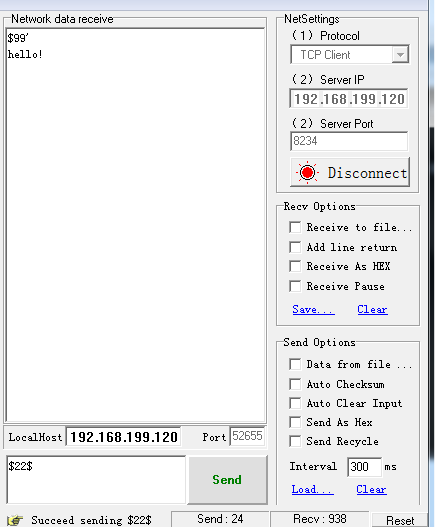

• (2)当有客户端连接请求时，发送"$99'"，要求客户端注册
• (3)客户端收到"$99'"后，发送"$22$"注册，其中22为其ID（或称为addr，具有唯一性，表示该客户端的地址）
• (4)双方建立通信连接，可以互相收发数据。
• (5)服务器端如何向客户端发送数据？
  在GasServerProtocol对象内部直接调用self.sendLine()即可 。
• (6)如何接收数据？在lineReceived回调函数中。

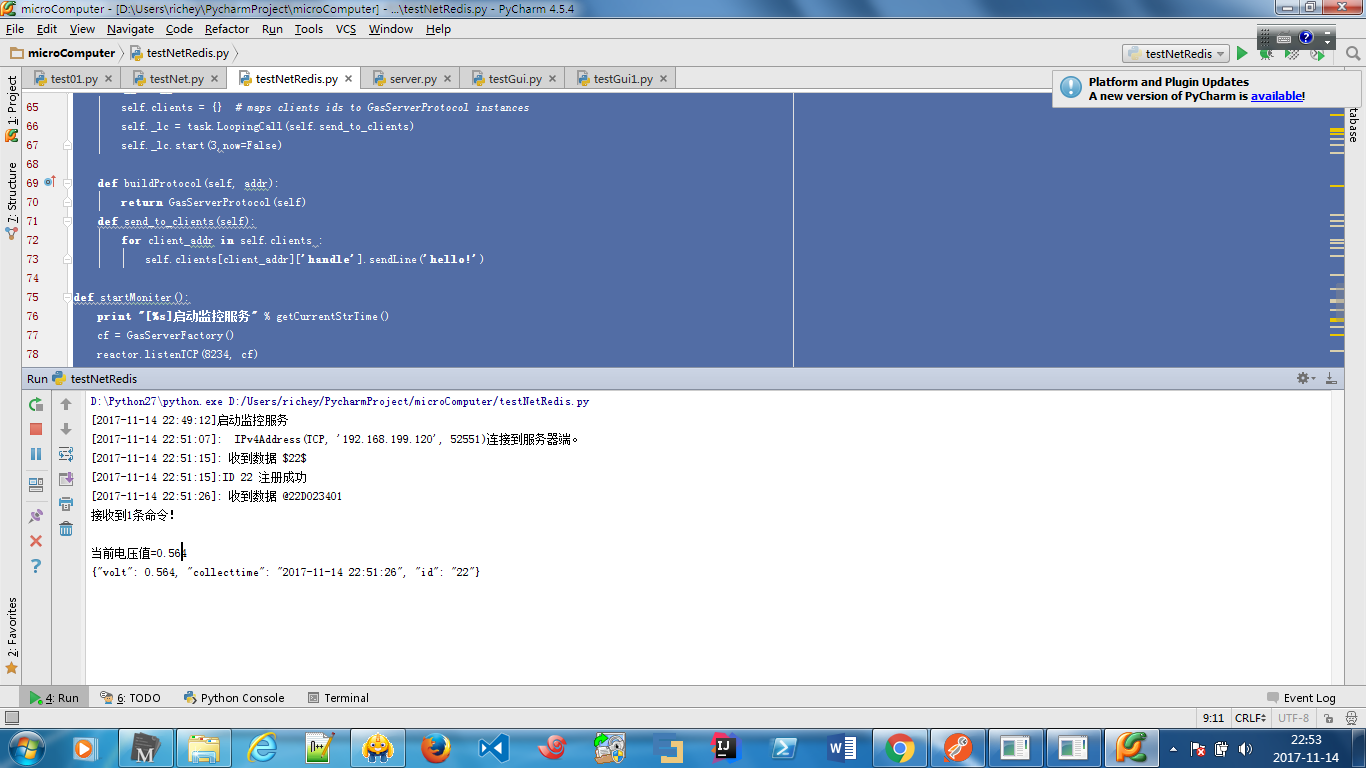

# coding=utf8
import re
import datetime
import time
import json
import redis
from twisted.internet import reactor, task, protocol
from twisted.internet import defer, threads
from twisted.internet.protocol import Protocol, error, Factory
from twisted.protocols.basic import LineReceiver
r = redis.Redis(host='127.0.0.1',port=6379,db=0)
def getCurrentStrTime():
    return time.strftime("%Y-%m-%d %H:%M:%S", time.localtime())
class GasServerProtocol(LineReceiver):
    def __init__(self, factory):
        self.id = ''
        self.factory = factory
    def connectionMade(self):
        print(
            "[%s]:  %s连接到服务器端。" %
            (getCurrentStrTime(), self.transport.getPeer()))
        self.sendLine("$99'")
    def connectionLost(self, reason):
        if self.id in self.factory.clients:
            del self.factory.clients[self.id]
            print "[%s]:ID %s 下线" % (getCurrentStrTime(), self.id)
        print(
            "[%s]:  %s断开了连接,原因是%s" %
            (getCurrentStrTime(),
             self.transport.getPeer(),
             reason))
    def lineReceived(self, data):
        tmpstr = ("[%s]: 收到数据 %s") % (getCurrentStrTime(), data)
        print tmpstr
        if(re.match("\$\d{2}\$", data)):
            self.id = str(data[1:3])
            dicttmp = {}
            dicttmp['handle'] = self
            dicttmp['timestamp'] = time.time()
            self.factory.clients[self.id] = dicttmp
            print "[%s]:ID %s 注册成功" % (getCurrentStrTime(), self.id)

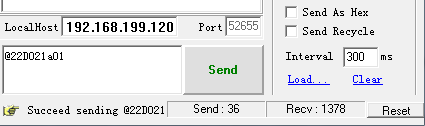

        if(re.match('@\d{2}\D\w{4}\d{2}',data)):
            if(data[3] == 'D'):
                print u'接收到1条命令！\r\n'
                volttmp = (int(data[4:8],16)/1000.0)
                tmpstr = "当前电压值=%.3f" % volttmp
                print tmpstr
                dicttmp = {}
                dicttmp['collecttime'] = getCurrentStrTime()
                dicttmp['volt'] = volttmp
                dicttmp['id'] = self.id
                r.set(self.id, json.dumps(dicttmp))
                print r.get(self.id)
class GasServerFactory(Factory):
    def __init__(self):
        self.clients = {}  # maps clients ids to GasServerProtocol instances
        self._lc = task.LoopingCall(self.send_to_clients)
        self._lc.start(3,now=False)
    def buildProtocol(self, addr):
        return GasServerProtocol(self)
    def send_to_clients(self):
        for client_addr in self.clients :
            self.clients[client_addr]['handle'].sendLine('hello!')
def startMoniter():
    print "[%s]启动监控服务" % getCurrentStrTime()
    cf = GasServerFactory()
    reactor.listenTCP(8234, cf)
    reactor.run()
def stopMoniter():
    print "[%s]停止监控服务" % getCurrentStrTime()
    try:
        reactor.crash()
    except RuntimeError:
        return defer.fail()
    else:
        return defer.succeed(None)
startMoniter()

2 RESTful API接口后端软件

• 理解RESTful架构
  http://www.ruanyifeng.com/blog/2011/09/restful.html
  RESTful API是主流的后端API接口规范，可以为移动客户端、WEB客户端及CS客户端提供后端数据访问接口，其优势在于同一套后端接口既可以为不同形式的客户端提供一致性的访问。客户端可以跨操作系统，甚至可以是嵌入式设备。
  -典型的数据访问过程：
  手机、浏览器、CS客户端 <-> 服务器端软件(REST API) <->数据库
• flask web框架（http://www.pythondoc.com/flask/）

# coding=utf-8
from flask import render_template, request, redirect
from flask import abort,jsonify,url_for,render_template, request, redirect
from flask_cors import CORS
import json
import redis
from flask import Flask
import datetime
from flask_cors import CORS
app = Flask(__name__)
CORS(app)
r = redis.Redis(host='127.0.0.1', port=6379, db=0)
@app.route('/')
def hello_world():
    return '你好!'

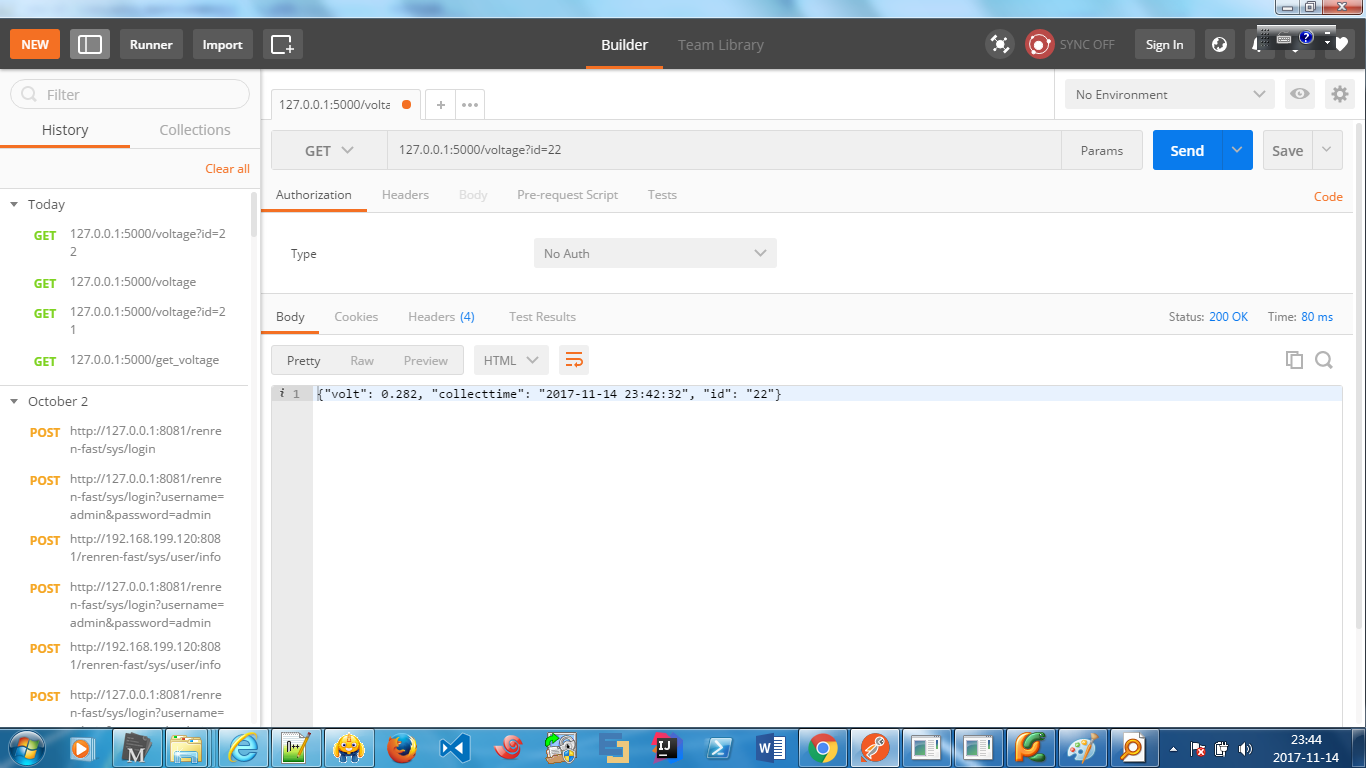

@app.route('/voltage')
def get_voltage():
    id = request.args.get('id', '')
    if id:
        json_data = r.get(id)
        if json_data:
            return jsonify(json.loads(json_data))
        return 'no data!'
    return 'no id!'
if __name__ == '__main__':
    app.run(host='0.0.0.0', port=int("5000"))

3.mysql 关系数据库

3.1 新建数据库

• 启动phpstudy中的mysql数据库
• 打开mysql管理器

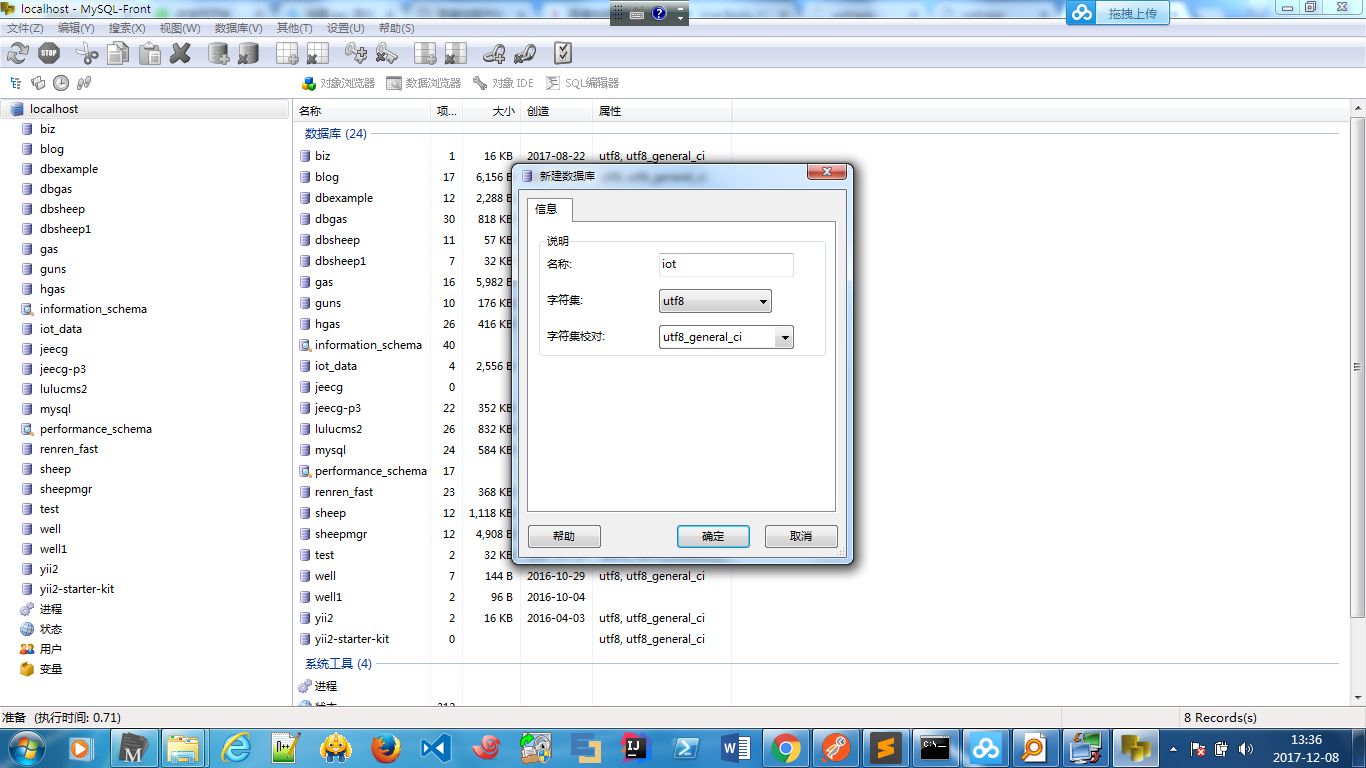

• 新建一个名字为iot的数据库，注意编码格式选utf8


3.2 新建表

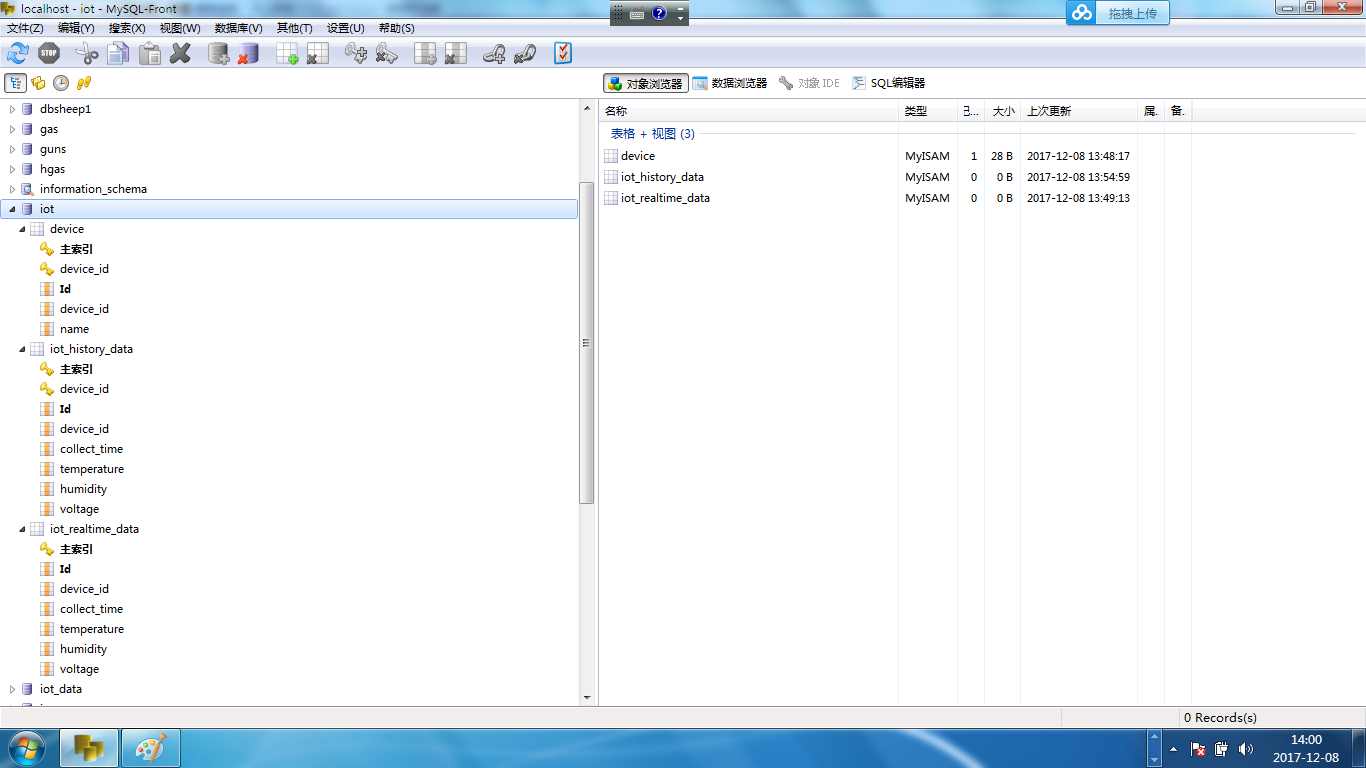

• 在iot数据库中，新建device、iot_realtime_data,iot_history_data,共三张表。

• 或执行如下脚本创建三张表

# Host: localhost  (Version: 5.5.47)
# Date: 2017-12-08 13:55:35
# Generator: MySQL-Front 5.3  (Build 4.234)
/*!40101 SET NAMES utf8 */;
#
# Structure for table "device"
#
CREATE TABLE `device` (
  `Id` int(11) NOT NULL AUTO_INCREMENT,
  `device_id` varchar(64) DEFAULT NULL,
  `name` varchar(255) DEFAULT NULL,
  PRIMARY KEY (`Id`),
  KEY `device_id` (`device_id`)
) ENGINE=MyISAM AUTO_INCREMENT=2 DEFAULT CHARSET=utf8;
#
# Data for table "device"
#
INSERT INTO `device` VALUES (1,'12','科大气象站');
#
# Structure for table "iot_history_data"
#
CREATE TABLE `iot_history_data` (
  `Id` int(11) NOT NULL AUTO_INCREMENT,
  `device_id` varchar(64) DEFAULT NULL,
  `collect_time` datetime DEFAULT NULL,
  `temperature` float DEFAULT NULL,
  `humidity` float DEFAULT NULL,
  `voltage` float DEFAULT NULL,
  PRIMARY KEY (`Id`),
  UNIQUE KEY `device_id` (`device_id`,`collect_time`)
) ENGINE=MyISAM DEFAULT CHARSET=utf8 ROW_FORMAT=DYNAMIC;
#
# Data for table "iot_history_data"
#
#
# Structure for table "iot_realtime_data"
#
CREATE TABLE `iot_realtime_data` (
  `Id` int(11) NOT NULL AUTO_INCREMENT,
  `device_id` varchar(64) DEFAULT NULL,
  `collect_time` datetime DEFAULT NULL,
  `temperature` float DEFAULT NULL,
  `humidity` float DEFAULT NULL,
  `voltage` float DEFAULT NULL,
  PRIMARY KEY (`Id`)
) ENGINE=MyISAM DEFAULT CHARSET=utf8;
#
# Data for table "iot_realtime_data"
#

3.3 操作mysql数据库

-增加功能
在现有功能基础上，每5分钟将数据存入iot的iot_history_data表中

# coding=utf8
#testNet.py
import re
import time
import json
import redis
from datetime import datetime
from twisted.internet import reactor, task, protocol
from twisted.internet import defer, threads
from twisted.internet.protocol import Protocol, error, Factory
from twisted.protocols.basic import LineReceiver
from dbhelper import insert_iot_record
r = redis.Redis(host='127.0.0.1',port=6379,db=0)
def getCurrentStrTime():
    return time.strftime("%Y-%m-%d %H:%M:%S", time.localtime())
class GasServerProtocol(LineReceiver):
    def __init__(self, factory):
        self.id = ''
        self.factory = factory
        self.last_iot_time = datetime.now()
        self.fisrt_recv_flag = True
    def connectionMade(self):
        print(
            "[%s]:  %s连接到服务器端。" %
            (getCurrentStrTime(), self.transport.getPeer()))
        self.sendLine("$99'")
    def connectionLost(self, reason):
        if self.id in self.factory.clients:
            del self.factory.clients[self.id]
            print "[%s]:ID %s 下线" % (getCurrentStrTime(), self.id)
        print(
            "[%s]:  %s断开了连接,原因是%s" %
            (getCurrentStrTime(),
             self.transport.getPeer(),
             reason))
    def insert_iot_record_cb(self, result):
        print result
        self.last_iot_time = datetime.now()
        self.fisrt_recv_flag = False
    def lineReceived(self, data):
        tmpstr = ("[%s]: 收到数据 %s") % (getCurrentStrTime(), data)
        print tmpstr
        if(re.match("\$\d{2}\$", data)):
            self.id = str(data[1:3])
            dicttmp = {}
            dicttmp['handle'] = self
            dicttmp['timestamp'] = time.time()
            self.factory.clients[self.id] = dicttmp
            print "[%s]:ID %s 注册成功" % (getCurrentStrTime(), self.id)
        if(re.match('@\d{2}\D\w{12}\d{2}',data)):
            if(data[3] == 'D'):
                print u'接收到1条命令！\r\n'
                volttmp = (int(data[4:8],16)/1000.0)
                temperature = (int(data[8:12],16)/10.0)
                humidity = (int(data[12:16],16)/10.0)
                dicttmp = {}
                dicttmp['collecttime'] = getCurrentStrTime()
                dicttmp['voltage'] = volttmp
                dicttmp['temperature'] = temperature
                dicttmp['humidity'] = humidity
                dicttmp['id'] = self.id
                r.set(self.id, json.dumps(dicttmp))
                print r.get(self.id)
            current_time = datetime.now()
            if((current_time - self.last_iot_time).seconds >= 5 * 60 or self.fisrt_recv_flag):
                insert_iot_record( r.get(self.id)).addCallback(
                    self.insert_iot_record_cb)
class GasServerFactory(Factory):
    def __init__(self):
        self.clients = {}  # maps clients ids to GasServerProtocol instances
        self._lc = task.LoopingCall(self.send_to_clients)
        self._lc.start(3,now=False)
    def buildProtocol(self, addr):
        return GasServerProtocol(self)
    def send_to_clients(self):
        for client_addr in self.clients :
            self.clients[client_addr]['handle'].sendLine('hello!')
def startMoniter():
    print "[%s]启动监控服务" % getCurrentStrTime()
    cf = GasServerFactory()
    reactor.listenTCP(8234, cf)
    reactor.run()
def stopMoniter():
    print "[%s]停止监控服务" % getCurrentStrTime()
    try:
        reactor.crash()
    except RuntimeError:
        return defer.fail()
    else:
        return defer.succeed(None)
startMoniter()

# coding=utf-8
# dbhelper.py
from flask_sqlalchemy import SQLAlchemy
from twisted.enterprise import adbapi
import binascii
import decimal
import datetime
import MySQLdb
import json
db_conn = 'MySQLdb'
db_user = 'root'
db_pass = 'root'
db_host = '127.0.0.1'
db_database = 'iot'
dbpool = adbapi.ConnectionPool(
    db_conn,
    host=db_host,
    user=db_user,
    passwd=db_pass,
    db=db_database,
    charset='utf8',
    cp_reconnect=True)
def _insert_iot_record(trans, record):
    iot_dict = json.loads(record) # 根据字符串书写格式，将字符串自动转换成 字典类型
    print iot_dict
    try:
        sql = 'insert into iot_history_data (device_id,voltage,humidity,temperature,collect_time)'+\
              ' values(\'%s\',\'%6.2f\',\'%6.2f\',\'%6.2f\',\'%s\')' % (
            iot_dict['id'],  iot_dict['voltage'], iot_dict['humidity'], iot_dict['temperature'], iot_dict['collecttime'])
        print sql
        result = trans.execute(sql)
        return 'True'
    except:
        return 'False'
def insert_iot_record(record):
    return dbpool.runInteraction(_insert_iot_record, record)
